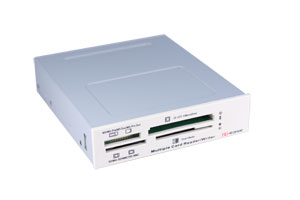

3.5" Internal Card Reader
Model No.: N1104
Features
- Provides USB 2.0 interface fully backward compatibility with USB1.1 devices
- Supports high-speed data transfer rate up to 480Mbps
- Provides 2 LED indicators for power and data access status
- Supports Bus-powered
- Four media slots can be used at the same time for data exchange
Specifications
| Interface | USB 2.0 High-Speed |
| Data Transfer Rate | Supports high-speed 480Mbps / full-speed 12 Mbps / low-speed 1.5Mbps |
| Four Media Slots | Upper slot: Memory Stick and CFI/II Lower slot: SD/MMC and SM |
| Memory Cards Supports | MS: MS + MS-Pro + MS-Duo+ MS Pro Duo CF: CF-I/II, Micro Drive, Magicstor, CF Ultra II SM: Smart Media SD: SD, Mini SD, T-Flash/Micro SD / MMC + RS-MMC |
| Indicators | power-on and active LED |
| Environment | Operating Temperature: 5°C ~ 40°C Storage Temperature: -20°C ~ 60°C Operating Humidity: 0%~80% RH, non-condensing |
| Unit Dimension | 102mm x 120mm x 25.5mm (LxDxH) |
System Requirements
- Microsoft Windows 2000/XP/win7/win10/win11
- MAC OS 8.6 or higher
- Linux OS 2.4 or higher
Package Contents
- Blister / Box / Bulk packing
- USB 2.0 Extension Cable
